Choosing the right process.

A practical guide to routing aerospace, defense, and high-precision components across common manufacturing processes — 3- and 5-axis milling, CNC, Swiss, and mill-turn turning, wire EDM, and surface grinding. Set your geometry, material, and volume constraints below to see which setups fit.

Visual routing engine

Process decision tree.

Hover a decision node to trace its routing branch. Click any process leaf (the colored endpoints) to highlight its capability card in the matrix below.

Part geometry?Rotational / RoundPrismatic / 3DHardened / Sharp-cornerSWISS CNC≤ 32mm barCNC LATHEShafts, OD / IDTURN-MILLDone-in-one3-AXIS MILLPrismatic 2.5D5-AXIS MILLComplex contoursWIRE EDMThru-cut, sharpGRINDINGFlat / parallel

Interactive configurator

Part requirement compiler.

Set your part's geometry, material, volume, and tolerance below. Candidate processes stay lit; availability and feasibility require review.

▸ Metallurgical note: EDM requires an electrically conductive workpiece. Hardened tool steels are best finished by wire EDM or surface grinding after heat-treat, where cutters can no longer hold size.
Active constraints: 7 of 7 reference processes matching
Send requirements to a quote →

Process matrix

In-house capability detail.

precision tolerance

01

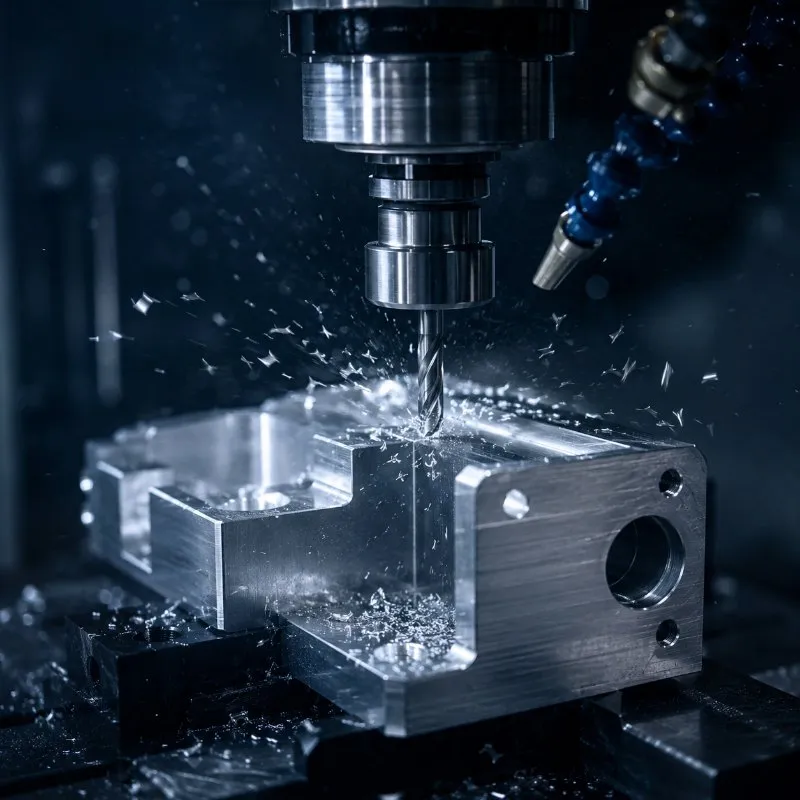

3-axis CNC milling

Signature features

  • Pockets & bossesOpen pockets, steps, and bosses milled from one face.
  • Holes & boresDrilled and bored holes normal to the face, reamed to size.
  • Slots & keywaysStraight slots, keyways, and flat faces in a single setup.
Work envelope
Up to 64″ × 32″ × 30″ on our large-format vertical mills
Tolerance limits
0.001″ standard, 0.0002″ best
Surface finish
32—125 µin Ra
Cost structure
Lowest setup cost; cycle scales with feature count

Workhorse for box-like and plate-style parts.

Typical parts
  • Mounting brackets
  • Base plates
  • Housings & enclosures
  • Manifold blocks
  • Clamps & fixtures
ultra tolerance

02

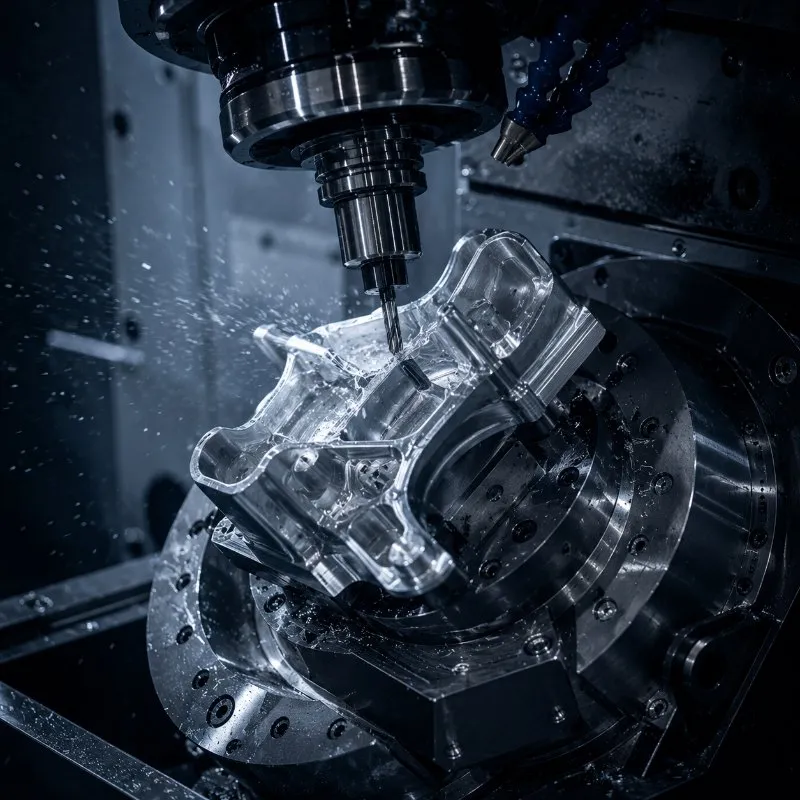

5-axis CNC milling

Signature features

  • UndercutsReach under overhangs by tilting the part — no special tooling.
  • Compound-angle holesHoles on compound angles drilled true in one setup.
  • Sculpted contoursBlended 3D surfaces: impellers, vanes, aero structures.
Work envelope
Varies by machine — trunnion mills commonly run parts up to ~24″
Tolerance limits
0.001″ tight, 0.0002″ best
Surface finish
16—32 µin Ra
Cost structure
Higher hourly rate; eliminates secondary setups → often net cheaper

Holds the part once to reduce stack-up.

Typical parts
  • Aerospace structural brackets
  • Impellers & blisks
  • Contoured housings
  • Pump manifolds
  • Nozzles & cones
precision tolerance

03

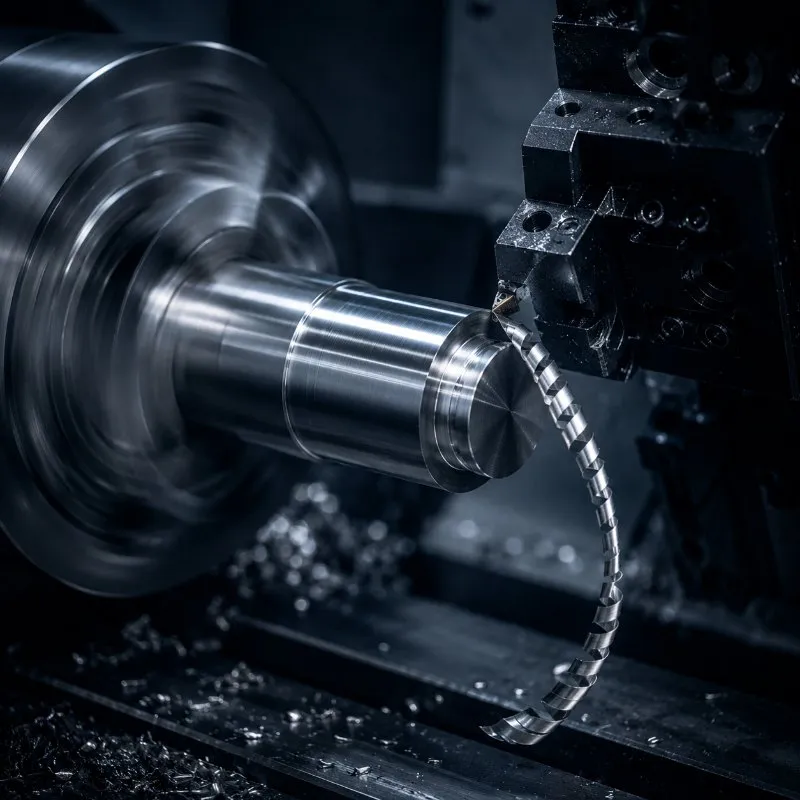

CNC turning (lathe)

Signature features

  • Concentric OD / IDOutside and inside diameters held true to one another.
  • GroovesO-ring, snap-ring, and relief grooves.
  • ThreadsSingle-point OD and ID threads.
Work envelope
Varies by lathe, chuck and bar capacity
Tolerance limits
0.001″ tight, 0.0002″ best
Surface finish
16—63 µin Ra
Cost structure
Bar-fed turning runs lights-out; very low per-part cost at volume

First choice for any rotationally symmetric part.

Typical parts
  • Shafts & pins
  • Bushings & sleeves
  • Bore housings
  • Threaded fittings
  • Flanges
ultra tolerance

04

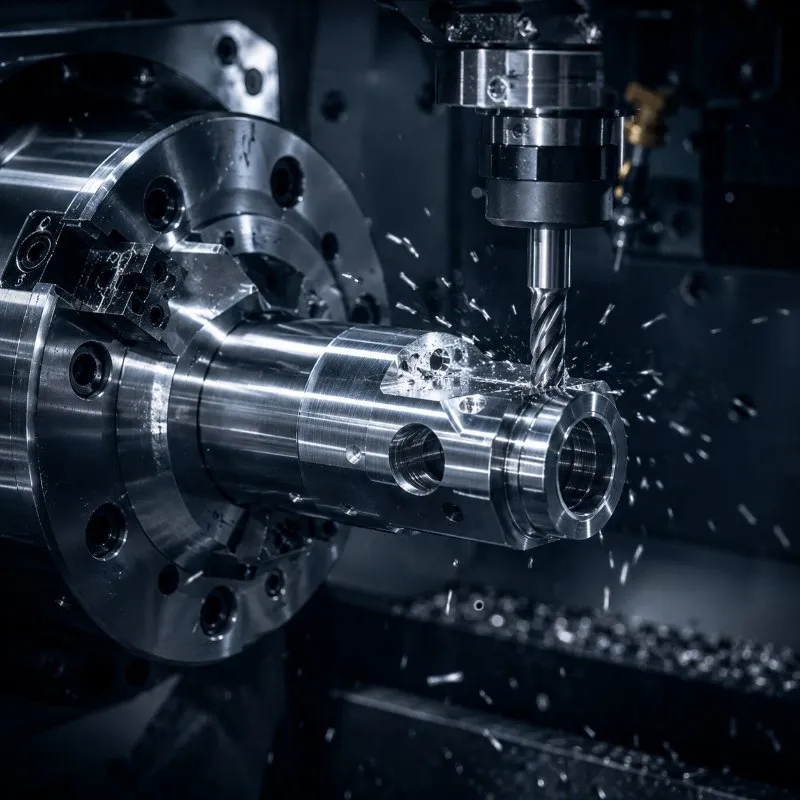

Mill-turn / multitasking

Signature features

  • Cross-holes & flatsOff-axis holes and wrench flats added without re-fixturing.
  • Concentric turn + millTurned and milled features share one datum — 0.0002″ ID-OD.
  • Threaded, done-in-oneThread, drill, and sub-spindle back-work in one cycle.
Work envelope
Varies by machine — typically bar work up to ~3″
Tolerance limits
0.001″ tight, 0.0002″ best
Surface finish
16—63 µin Ra
Cost structure
Higher rate, but collapses turn + mill + back-work into one chucking — fewer setups, no stack-up

Turning and live-tool milling in a single setup with sub-spindle back-work, so the part comes off complete.

Typical parts
  • Hydraulic & pneumatic fittings
  • Valve bodies
  • Turned-and-milled housings
  • Manifolds
  • Shafts with flats & cross-holes
ultra tolerance

05

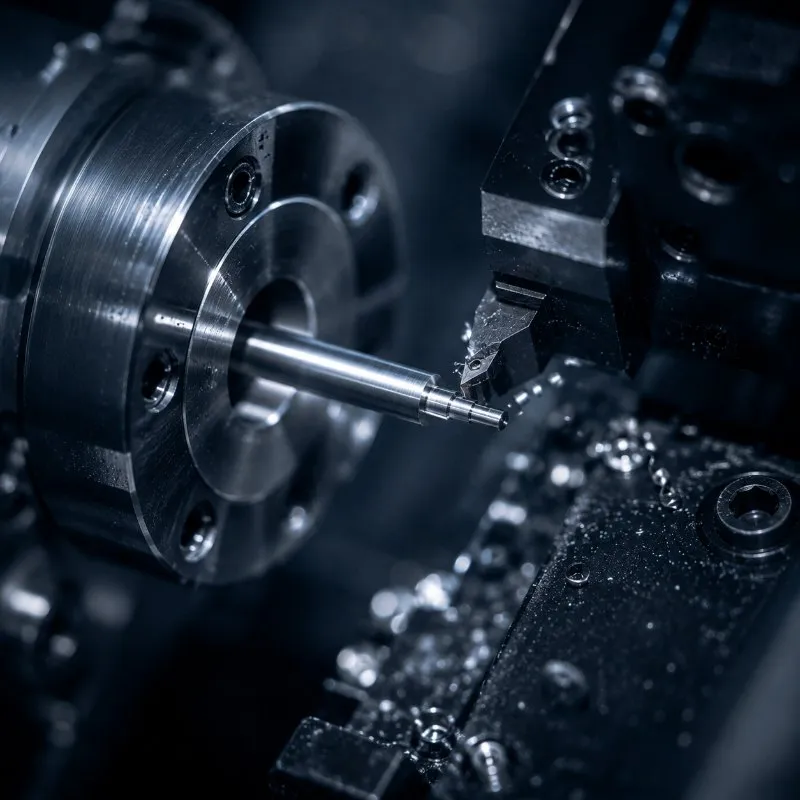

Swiss-type CNC turning

Signature features

  • Long & slenderGuide bushing supports the bar at the cut — high L:D, no deflection.
  • Micro-threadsFine threads and knurls on small-diameter bar.
  • Cross featuresLive-tool cross-holes and flats on small parts.
Work envelope
Typically 1mm — 32mm bar diameter
Tolerance limits
0.0005″ tight, 0.0001″ best
Surface finish
16—32 µin Ra
Cost structure
Excellent for small repeat work; less suited to large or one-off parts

Sliding headstock supports the bar right at the cut, eliminating deflection on long, thin parts.

Typical parts
  • Pins & dowels
  • Bone screws
  • Connector contacts
  • Micro-fittings
  • Small stepped bushings
ultra tolerance

06

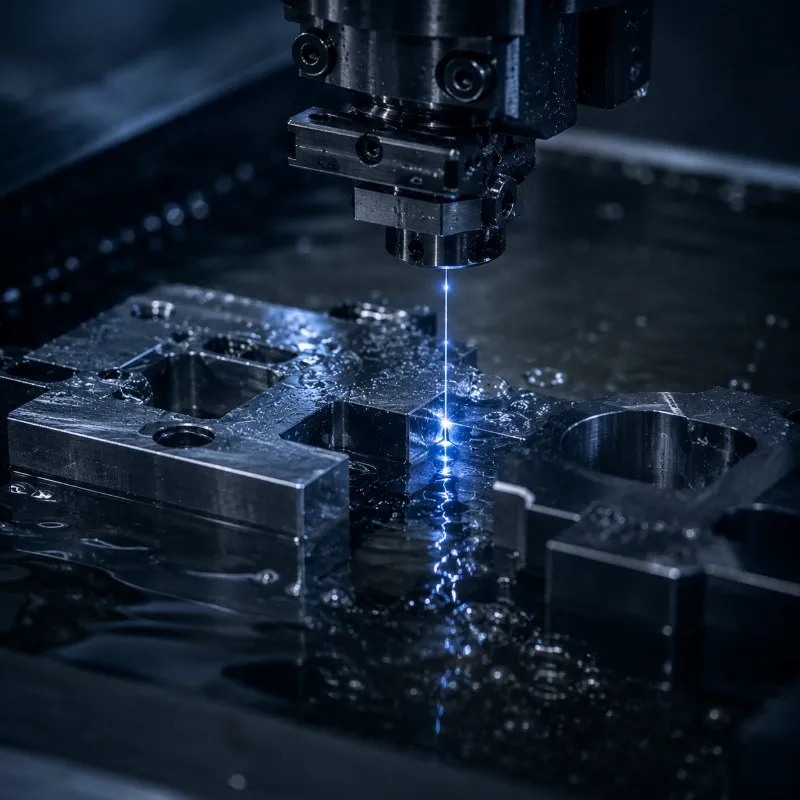

Wire EDM

Signature features

  • Sharp inside cornersInner radius to ~0.0025″ with 0.004″ wire — no cutter-radius limit.
  • Thin wallsNo cutting force, so thin-wall ratios of 100:1+ stay flat.
  • Hardened materialCuts any conductive material regardless of hardness.
Work envelope
Varies by machine — commonly ~24″ × 16″ × 12″
Tolerance limits
0.0002″ tight, 0.00008″ best
Surface finish
4—125 µin Ra (varies by pass; 4 µin best, multi-pass skim)
Cost structure
Slow process; used selectively for what conventional milling can't do

Cuts any electrically conductive material regardless of hardness — square internal corners, true profile tolerance.

Typical parts
  • Punch & die details
  • Splines & gears
  • Collets
  • Hardened inserts
  • Sharp-corner profiles
ultra tolerance

07

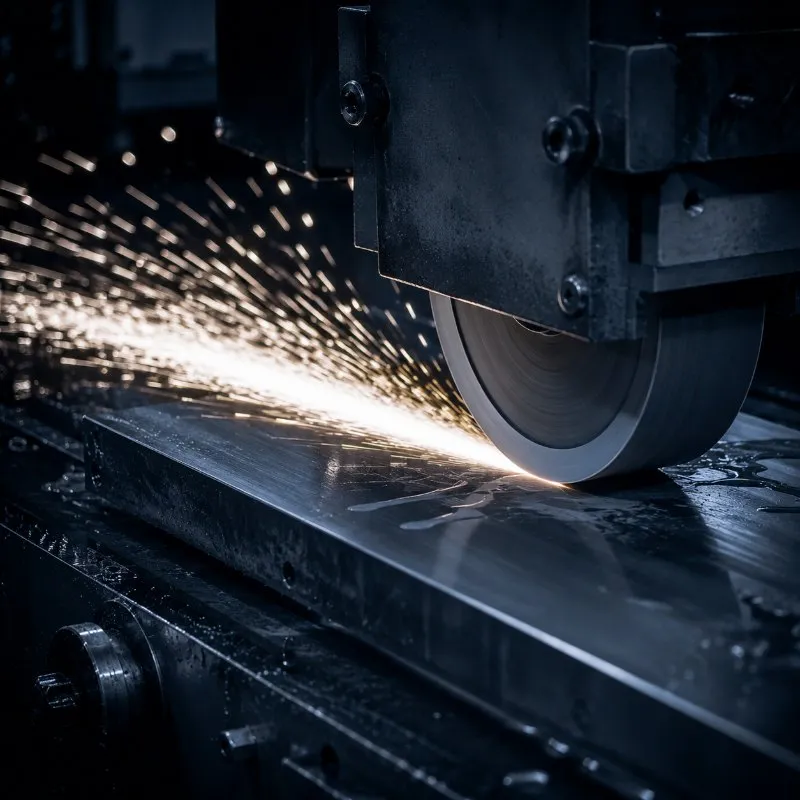

Surface grinding

Signature features

  • Flat & parallelHigh-flatness, high-parallelism faces to 0.0001″.
  • Precise thicknessPlate thickness held across the whole face.
  • Post-heat-treatFinishes hardened parts after HT, where cutters can't hold size.
Work envelope
Varies by grinder — small-chuck machines ~6″ × 12″
Tolerance limits
0.0001″ tight
Surface finish
8—32 µin Ra
Cost structure
Secondary operation; typically scoped per finished face

For high-flatness, high-parallelism faces — and to finish hardened materials after heat treat, where cutters can no longer hold size.

Typical parts
  • Hardened die plates
  • Parallels & gauge-class blocks
  • Sealing faces
  • Bearing-class flats
  • Post-heat-treat datums

Combined operations

Sequence routing logic.

Most precision components need more than one operation. Routing them across sequences — minimizing re-fixturing, matching heat-treat cycles, and finishing after hardening — is what holds the final tolerance. Confirm the available machining, inspection and outside-processing scope with your supplier before finalizing a routing.

5-Axis Mill ➔ Wire EDM ➔ Surface Grind

Machine the 3D profile on a 5-axis mill, slice hardened through-features and square internal corners on the wire EDM, then finish-grind datums flat and parallel after heat-treat.

Turn ➔ Live-Tool Mill ➔ Bead Blast

Bar-feed and turn on a live-tool lathe, add cross-holes and flats with live tooling in the same setup, then a uniform glass-bead finish in a suitable bead-blast cabinet.

Swiss Turn ➔ Deburr ➔ Passivate

Run small-diameter production parts on a Swiss-type lathe, vibratory- and hand-deburr the edges, then coordinate citric passivation through a vetted partner before AS9102 first-article inspection.

Engineering reference

Technical cheat sheets.

Shop-floor references for design engineers — surface-finish capability by process, and how tightening tolerance drives cost. Use them to sanity-check callouts before releasing drawings.

Surface roughness (Ra) capability spectrum

Surface roughness (Ra) describes the average height of microscopic peaks and valleys on a machined face. Standard milling runs comfortably between 32 and 125 µin; a mirror-class finish under 8 µin post-hardening calls for precision surface grinding or a fine wire-EDM skim pass.

Surface Grinding
8 Ra32 Ra
5-Axis CNC Milling
16 Ra32 Ra
Swiss CNC Turning
16 Ra32 Ra
CNC Lathe Turning
16 Ra63 Ra
Mill-Turn (turn-mill)
16 Ra63 Ra
3-Axis CNC Milling
32 Ra125 Ra
Wire EDM
4 Ra125 Ra
4 µin8 µin16 µin32 µin63 µin125 µin

Strict physical boundaries

Review machining constraints before design release.

  • EDM white layer: Wire EDM leaves a thin, stressed recast layer. For fatigue-critical parts a routing may add a low-power skim pass or call it out for removal so no micro-cracks remain.
  • Heat-treat distortion: Hardened parts move during heat treat. A routing may leave grind stock on datums and finish-grind after HT to hold flatness and parallelism to 0.0001″.
  • Thin-wall deflection: Walls under ~0.020″ flex under tool pressure. Possible approaches include sacrificial tabs, climb-finishing passes, and stress-relief between roughing and finishing.
  • Superalloy work hardening: Inconel and titanium work-harden if the tool dwells. Constant chip load, sharp coated tooling, and rigid workholding keep the cut moving.
  • Deep-pocket aspect ratio: Pockets beyond ~4× tool diameter need step-downs, high-helix tooling, and through-spindle coolant to evacuate chips and avoid recutting.
Review part with an engineer
